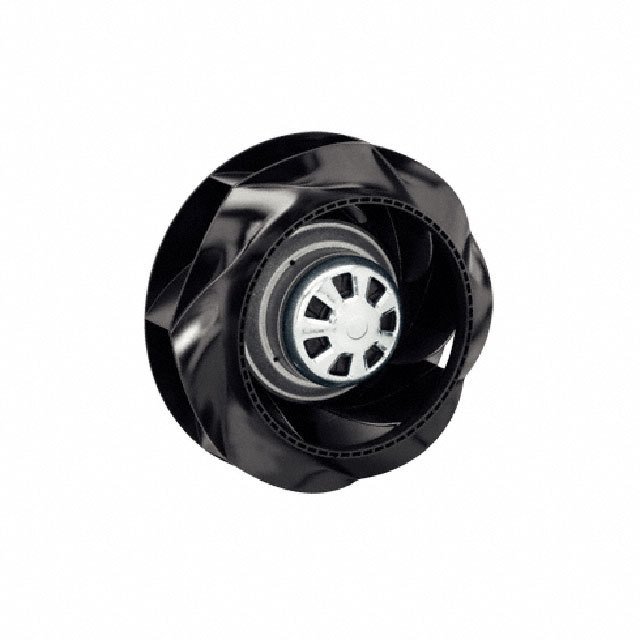

R3G220-RD53-03
| Manufacturer: | ebm-papst Inc. |
In Stock 8 pcs
|
|
|---|---|---|---|
| Datasheet: | R3G220-RD53-03 | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN IMP MTRZD 220X92MM 230VAC | $406.04 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3230 RPM
- Noise
- 69.0 dB(A)
- Width
- 92.00mm
- Series
- Green Tech RadiCal® R3G220RD
- Weight
- 3.2 lbs (1.5 kg)
- Air Flow
- 747.5 CFM (20.93m³/min)
- Fan Type
- Motorized Impellers
- Features
- Electronic Commutation (EC)
- Approvals
- UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 168W
- Voltage Range
- 200 ~ 240VAC
- Static Pressure
- -
- Voltage - Rated
- 230VAC
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 252mm Dia
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Current Rating (Amps)
- -
- Operating Temperature
- -13 ~ 113°F (-25 ~ 45°C)
