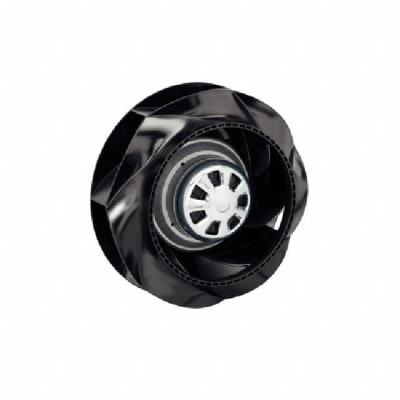

R3G220-RC05-03
| Manufacturer: | ebm-papst Inc. |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | R3G220-RC05-03 | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | MOTORIZED IMPELLER | $335.66 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2580 RPM
- Noise
- -
- Width
- 71.00mm
- Series
- R3G220
- Air Flow
- -
- Fan Type
- Motorized Impellers
- Features
- Electronic Commutation (EC), PWM Control, Speed Sensor (Tach), Thermal Overload Protector (TOP)
- Approvals
- CCC, CE, CSA, EAC, UL
- Part Status
- Active
- Termination
- 3 Wire Leads with Splice Terminals, 4 Wire Leads with Splice Terminals
- Bearing Type
- Ball
- Power (Watts)
- 85.0W
- Voltage Range
- 200 ~ 240VAC
- Static Pressure
- -
- Voltage - Rated
- 230VAC
- Material - Blade
- Polyamide (PA), Nylon
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 220mm Dia
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.700A
- Operating Temperature
- -13 ~ 140°F (-25 ~ 60°C)
