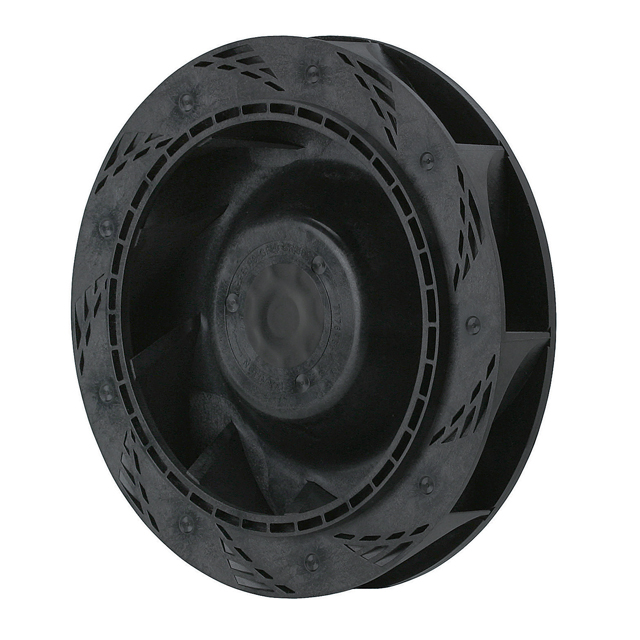

9W1TN48P1H01
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9W1TN48P1H01 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 150X35MM 48VDC IP54 CENT | $71.22 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3800 RPM
- Noise
- 59.0 dB(A)
- Width
- 35.00mm
- Series
- San Ace 150W
- Weight
- 0.728 lb (330.22 g)
- Air Flow
- 135.0 CFM (3.78m³/min)
- Fan Type
- Motorized Impellers
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 15.40W
- Voltage Range
- 36 ~ 55.2VDC
- Static Pressure
- 1.578 in H2O (393.1 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- Varies Based on Temperature
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 150mm Dia
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.320A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
