9W1TM48P4G01
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 5 pcs
|
|
|---|---|---|---|
| Datasheet: | 9W1TM48P4G01 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

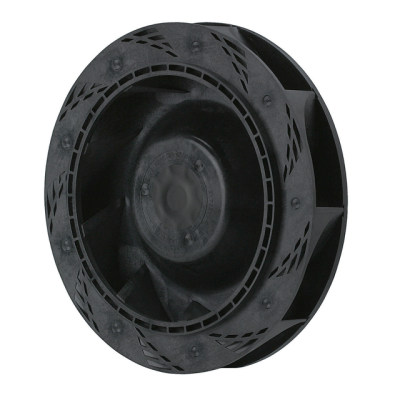

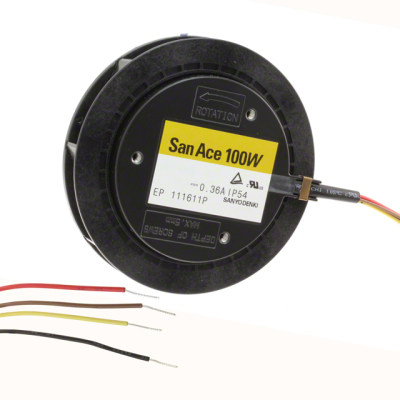

| Description: | FAN 100X25MM 48VDC IP54 CENT | $66.29 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7400 RPM
- Noise
- 65.0 dB(A)
- Width
- 25.00mm
- Series
- San Ace 100W
- Weight
- 0.353 lb (160.12 g)
- Air Flow
- 71.7 CFM (2.01m³/min)
- Fan Type
- Motorized Impellers
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 17.28W
- Voltage Range
- 36 ~ 60VDC
- Static Pressure
- 2.840 in H2O (708.0 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- Varies Based on Temperature
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 100mm Dia
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.360A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
