1833030
| Manufacturer: | Phoenix Contact |
In Stock 24 pcs
|
|
|---|---|---|---|
| Datasheet: | 1833030 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |

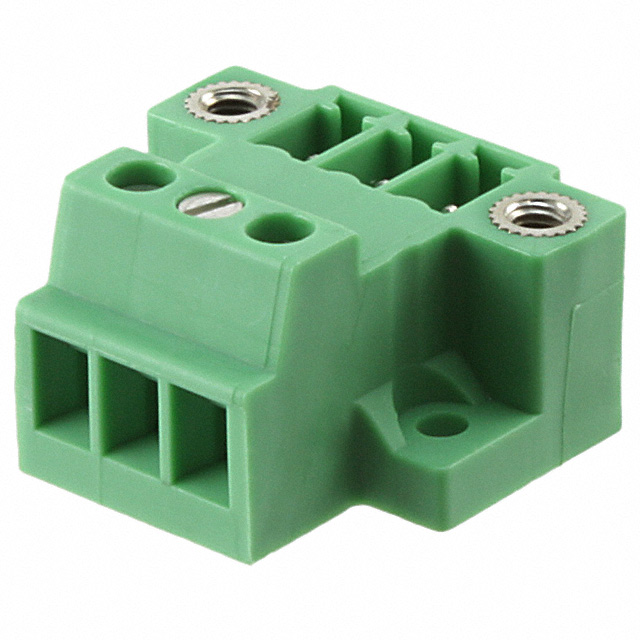

| Description: | TERM BLOCK RCPT 3POS 3.81MM | $6.81 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Receptacle, Male Pins
- Color
- Green
- Pitch
- 0.150" (3.81mm)
- Series
- COMBICON MCVU
- Features
- Mating and Mounting Flange
- Packaging
- Bulk
- Screw Size
- M2
- Part Status
- Active
- Current - UL
- 8A
- Voltage - UL
- 300V
- Current - IEC
- 8A
- Mounting Type
- Board Mount
- Voltage - IEC
- 320V
- Torque - Screw
- 0.22-0.25 Nm (1.9-2.2 Lb-In)
- Plug Wire Entry
- -
- Contact Material
- -
- Number of Levels
- 1
- Insulation Height
- 0.492" (12.50mm)
- Termination Style
- Screw - Clamping Yoke (Tension Sleeve)
- Wire Strip Length
- 7mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA), Nylon
- Number of Positions
- 3
- Positions Per Level
- 3
- Contact Mating Finish
- Tin
- Operating Temperature
- -
- Wire Gauge or Range - AWG
- 14-30 AWG
- Wire Gauge or Range - mm²
- 0.14-1.5mm²
- Material Flammability Rating
- UL94 V-0
