1833014
| Manufacturer: | Phoenix Contact |
In Stock 38 pcs
|
|
|---|---|---|---|
| Datasheet: | 1833014 | ||
| Product Category: | Terminal Blocks - Specialized | Reference Price (In US Dollars) | 1pcs |

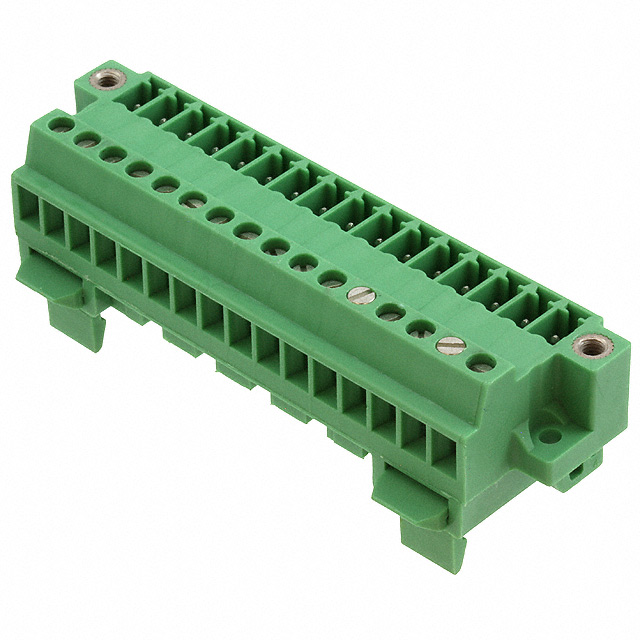

| Description: | TERM BLK PLUG 16POS 27.8MM GREEN | $56.95 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug Connection - Ganged
- Length
- 2.809" (71.35mm)
- Series
- COMBICON MCVK
- Features
- Mating Flange
- Part Status
- Active
- Current - UL
- 8A
- Height (Max)
- 1.051" (26.70mm)
- Voltage - UL
- 300V
- Current - IEC
- 8A
- Housing Color
- Green
- Mounting Type
- DIN Rail
- Voltage - IEC
- 160V
- Number of Levels
- 1
- Stripping Length
- 7mm
- Terminal - Width
- 27.8mm
- Termination Style
- Plug Receptacles, Screw
- Number of Positions
- 16
- Material - Insulation
- Polyamide (PA), Nylon
- Operating Temperature
- -
- Wire Gauge or Range - AWG
- 14-30 AWG
- Wire Gauge or Range - mm²
- 0.14-0.5mm²
- Material Flammability Rating
- UL94 V-0
