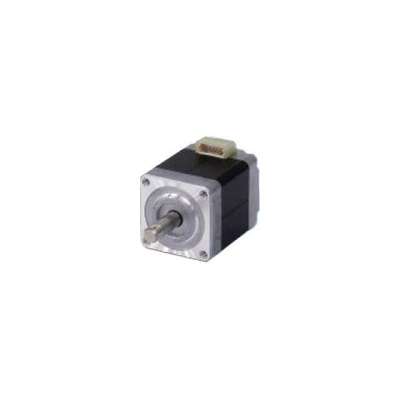

10PM-K202B
| Manufacturer: | NMB Technologies Corporation |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 10PM-K202B | ||
| Product Category: | Stepper Motors | Reference Price (In US Dollars) | 1pcs |
| Description: | STEPPER MOTOR HYBRID BIPOLAR 24V | $43.18 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Hybrid
- Series
- 10PM
- Weight
- 0.121 lb (54.88 g)
- Accuracy
- -
- Features
- Round Shaft
- Approvals
- -
- Coil Type
- Bipolar
- Step Angle
- 1.8°
- Part Status
- Active
- Rotor Inertia
- 2gcm²
- Coil Resistance
- 3.8 Ohms
- NEMA Frame Size
- 10
- Voltage - Rated
- 24VDC
- Diameter - Shaft
- 0.197" (5.00mm)
- Size / Dimension
- Square - 0.984" x 0.984" (25.00mm x 25.00mm)
- Termination Style
- Connector
- Steps per Revolution
- 200
- Current Rating (Amps)
- 700mA
- Mounting Hole Spacing
- 0.787" (20.00mm)
- Operating Temperature
- -
- Length - Shaft and Bearing
- 0.394" (10.00mm)
- Torque - Holding (oz-in / mNm)
- 4.67 / 33
