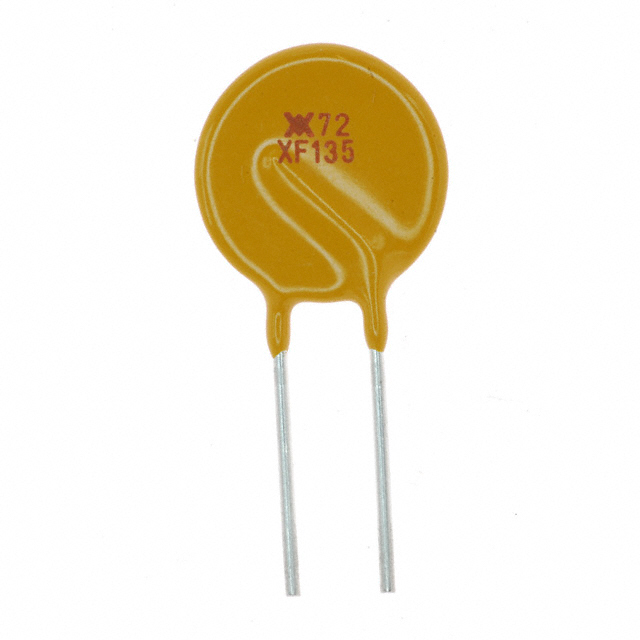

RXE135

Product Parameter

Type

Polymeric

Series

PolySwitch®, RXE

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Bulk

Part Status

Obsolete

Lead Spacing

0.199" (5.05mm)

Time to Trip

9.6s

Current - Max

40A

Mounting Type

Through Hole

Voltage - Max

60V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.571" Dia x 0.118" T (14.50mm x 3.00mm)

Current - Trip (It)

2.7A

Height - Seated (Max)

0.752" (19.10mm)

Operating Temperature

-40°C ~ 85°C

Current - Hold (Ih) (Max)

1.35A

Resistance - Initial (Ri) (Min)

120 mOhms

Resistance - Post Trip (R1) (Max)

300 mOhms
