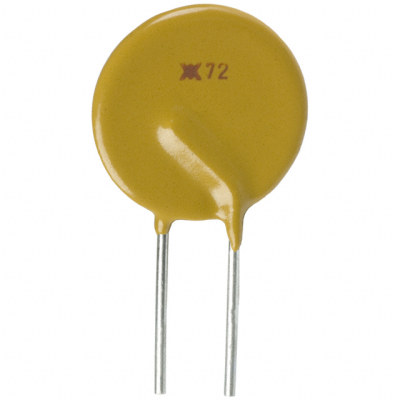

RXE110-2

Product Parameter

Type

Polymeric

Series

PolySwitch®, RXE

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Lead Spacing

0.199" (5.05mm)

Time to Trip

8.2s

Current - Max

40A

Mounting Type

Through Hole

Voltage - Max

72V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.504" Dia x 0.118" T (12.80mm x 3.00mm)

Current - Trip (It)

2.2A

Height - Seated (Max)

0.689" (17.50mm)

Operating Temperature

-

Current - Hold (Ih) (Max)

1.1A

Resistance - Initial (Ri) (Min)

150 mOhms

Resistance - Post Trip (R1) (Max)

380 mOhms
