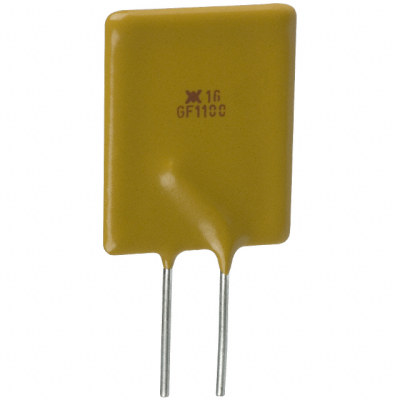

RGE1200

Product Parameter

Type

Polymeric

Series

PolySwitch®

Ratings

-

Approvals

CSA, TUV, UL

Packaging

Bulk

Part Status

Obsolete

Lead Spacing

0.400" (10.15mm)

Time to Trip

7.5s

Current - Max

100A

Mounting Type

Through Hole

Voltage - Max

16V

Package / Case

Radial, Disc

Thickness (Max)

-

Size / Dimension

0.670" L x 0.115" W (16.95mm x 2.90mm)

Current - Trip (It)

20.4A

Height - Seated (Max)

1.102" (28.00mm)

Operating Temperature

-

Current - Hold (Ih) (Max)

12A

Resistance - Initial (Ri) (Min)

3.3 mOhms
