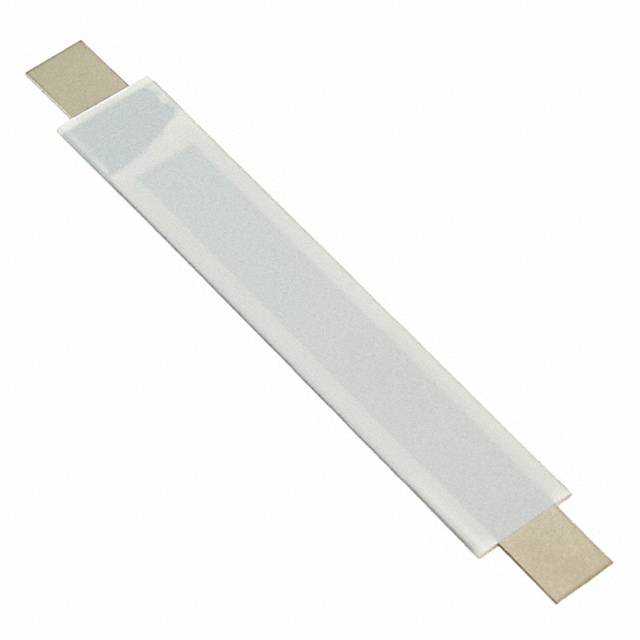

LR4-1300F
| Manufacturer: | Littelfuse Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | LR4-1300F | ||
| Product Category: | PTC Resettable Fuses | Reference Price (In US Dollars) | 1pcs |
| Description: | PTC RESET FUSE 20V 13A STRAP | $0.81 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Polymeric
- Series
- PolySwitch®, LR4
- Ratings
- -
- Approvals
- CSA, TUV, UL
- Packaging
- Bulk
- Part Status
- Active
- Lead Spacing
- -
- Time to Trip
- 10s
- Current - Max
- 100A
- Mounting Type
- User Defined
- Voltage - Max
- 20V
- Package / Case
- Strap
- Size / Dimension
- 2.520" L x 0.382" W (64.00mm x 9.70mm)
- Current - Trip (It)
- 21.2A
- Operating Temperature
- -40°C ~ 85°C
- Current - Hold (Ih) (Max)
- 13A
- Resistance - Initial (Ri) (Min)
- 3.5 mOhms
- Resistance - Post Trip (R1) (Max)
- 9 mOhms
