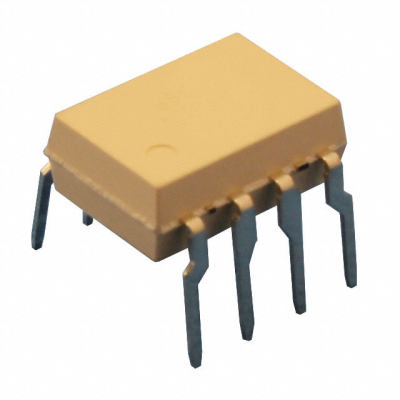

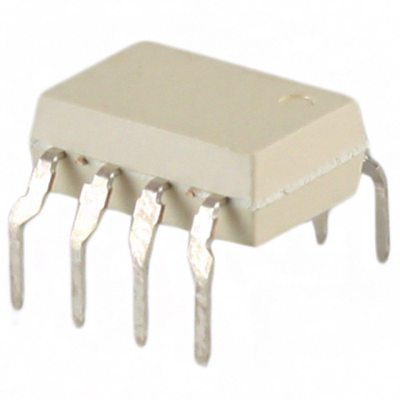

PS9513-AX

Product Parameter

Series

-

Data Rate

1Mbps

Packaging

Tube

Input Type

DC

Output Type

Open Collector

Part Status

Discontinued at Digi-Key

Mounting Type

Through Hole

Package / Case

8-DIP (0.300", 7.62mm)

Voltage - Supply

4.5V ~ 20V

Number of Channels

1

Voltage - Isolation

5000Vrms

Operating Temperature

-40°C ~ 100°C

Inputs - Side 1/Side 2

1/0

Rise / Fall Time (Typ)

-

Supplier Device Package

8-DIP

Current - Output / Channel

15mA

Voltage - Forward (Vf) (Typ)

1.65V

Current - DC Forward (If) (Max)

25mA

Propagation Delay tpLH / tpHL (Max)

750ns, 500ns

Common Mode Transient Immunity (Min)

15kV/µs
