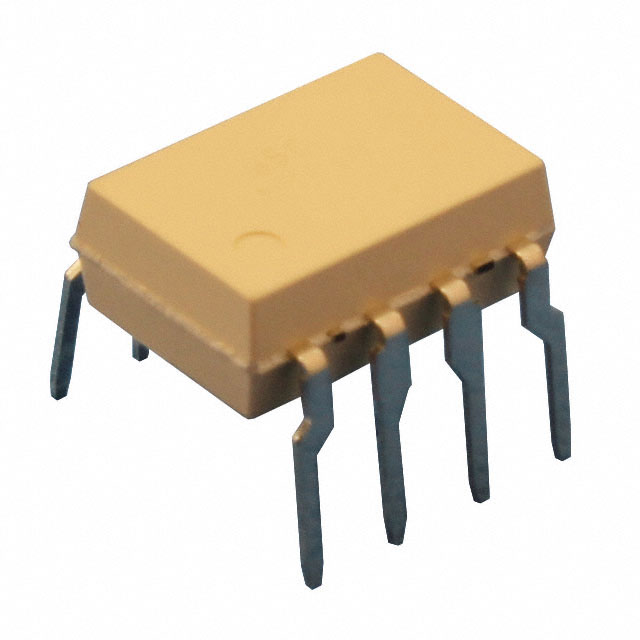

PS9505-AX

Product Parameter

Series

-

Approvals

CSA, SEMKO, UL

Packaging

Bulk

Technology

Optical Coupling

Part Status

Discontinued at Digi-Key

Mounting Type

Through Hole

Package / Case

8-DIP (0.300", 7.62mm)

Number of Channels

1

Voltage - Isolation

5000Vrms

Current - Peak Output

2.5A

Operating Temperature

-40°C ~ 110°C

Rise / Fall Time (Typ)

50ns, 50ns

Supplier Device Package

8-DIP

Voltage - Output Supply

15V ~ 30V

Current - Output High, Low

2A, 2A

Pulse Width Distortion (Max)

100ns

Voltage - Forward (Vf) (Typ)

1.56V

Current - DC Forward (If) (Max)

25mA

Propagation Delay tpLH / tpHL (Max)

250ns, 250ns

Common Mode Transient Immunity (Min)

25kV/µs
