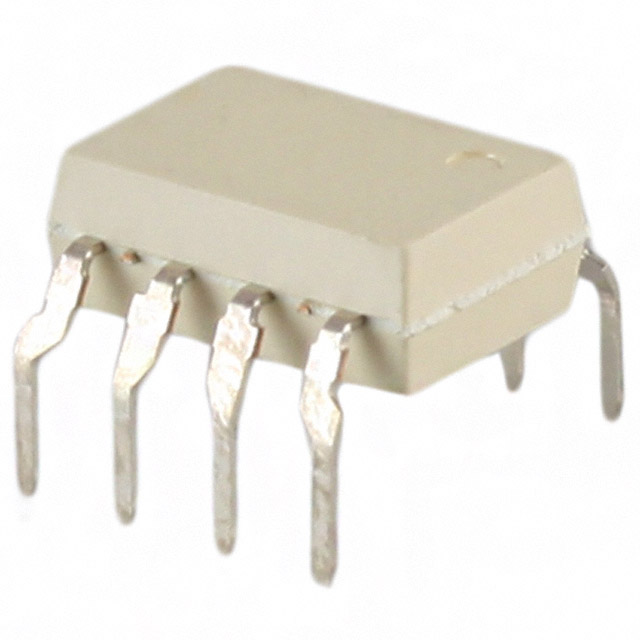

PS9505L1-AX
| Manufacturer: | CEL |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PS9505L1-AX | ||
| Product Category: | Isolators - Gate Drivers | Reference Price (In US Dollars) | 1pcs |
| Description: | OPTOISO 5KV 1CH GATE DRIVER 8DIP | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- -
- Approvals
- CSA, SEMKO, UL
- Packaging
- Bulk
- Technology
- Optical Coupling
- Part Status
- Discontinued at Digi-Key
- Mounting Type
- Through Hole
- Package / Case
- 8-DIP (0.400", 10.16mm)
- Number of Channels
- 1
- Voltage - Isolation
- 5000Vrms
- Current - Peak Output
- 2.5A
- Operating Temperature
- -40°C ~ 110°C
- Rise / Fall Time (Typ)
- 50ns, 50ns
- Supplier Device Package
- 8-DIP
- Voltage - Output Supply
- 15V ~ 30V
- Current - Output High, Low
- 2A, 2A
- Pulse Width Distortion (Max)
- 100ns
- Voltage - Forward (Vf) (Typ)
- 1.56V
- Current - DC Forward (If) (Max)
- 25mA
- Propagation Delay tpLH / tpHL (Max)
- 250ns, 250ns
- Common Mode Transient Immunity (Min)
- 25kV/µs
