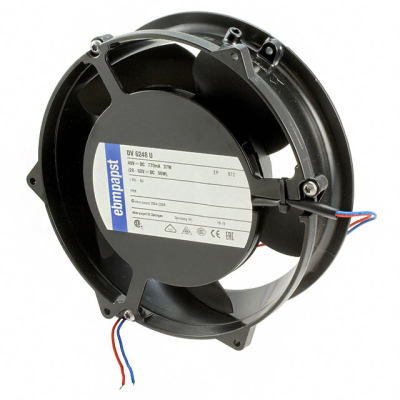

DV6248U

Product Parameter

RPM

4300 RPM

Noise

63.0 dB(A)

Width

50.80mm

Series

DV6200U

Weight

1.9 lbs (861.8 g)

Air Flow

317.8 CFM (8.90m³/min)

Fan Type

Tubeaxial

Features

-

Approvals

UL

Part Status

Obsolete

Termination

2 Wire Leads

Bearing Type

Ball

Power (Watts)

40.00W

Voltage Range

28 ~ 60VDC

Static Pressure

-

Voltage - Rated

48VDC

Lifetime @ Temp.

-

Material - Blade

Polyamide (PA), Nylon, Fiberglass Reinforced

Material - Frame

Aluminum

Size / Dimension

Round - 171.5mm Dia

Ingress Protection

IP68 - Dust Tight, Waterproof

Current Rating (Amps)

-

Operating Temperature

-4 ~ 167°F (-20 ~ 75°C)
