Lanka Micro

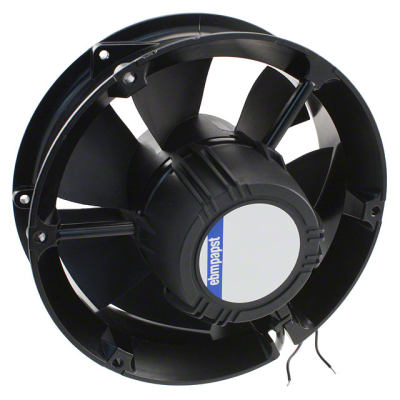

AC6200NM
| Manufacturer: | ebm-papst Inc. |
In Stock 144 pcs
|
|
|---|---|---|---|
| Datasheet: | AC6200NM | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 172X51MM 85/265VAC | $131.6 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2850 RPM
- Noise
- 50.0 dB(A)
- Width
- 51.00mm
- Series
- Green Tech ACmaxx, AC6200N
- Weight
- 2 lbs (907.2 g)
- Air Flow
- 206.0 CFM (5.77m³/min)
- Fan Type
- Tubeaxial
- Features
- Electronic Commutation (EC), Locked Rotor Protection
- Approvals
- CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 14.00W
- Voltage Range
- 85 ~ 265VAC
- Static Pressure
- -
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- 80000 Hrs @ 40°C
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 172mm Dia
- Ingress Protection
- IP54 - Dust Protected, Water Resistant
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
