Lanka Micro

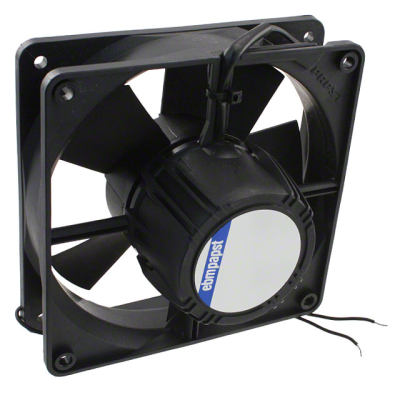

AC4300H
| Manufacturer: | ebm-papst Inc. |
In Stock 10 pcs
|
|
|---|---|---|---|
| Datasheet: | AC4300H | ||
| Product Category: | AC Fans | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 119X32MM 85/265VAC | $70.15 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3400 RPM
- Noise
- 51.0 dB(A)
- Width
- 32.00mm
- Series
- Green Tech ACmaxx, AC4300
- Weight
- 0.716 lb (324.77 g)
- Air Flow
- 120.0 CFM (3.36m³/min)
- Fan Type
- Tubeaxial
- Features
- Electronic Commutation (EC), Locked Rotor Protection
- Approvals
- CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 11.00W
- Voltage Range
- 85 ~ 265VAC
- Static Pressure
- -
- Voltage - Rated
- 115VAC
- Lifetime @ Temp.
- 45000 Hrs @ 40°C
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 119mm L x 119mm H
- Ingress Protection
- IP21
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
