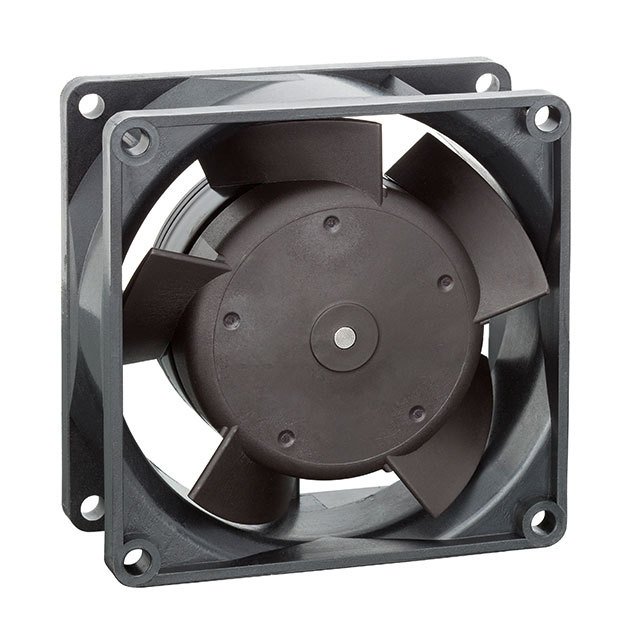

8312/10MV

Product Parameter

RPM

-

Noise

18.0 dB(A)

Width

32.00mm

Series

8300V

Weight

0.375 lb (170.1 g)

Air Flow

14.0 CFM (0.392m³/min)

Fan Type

Tubeaxial

Features

Temperature Sensor

Approvals

-

Part Status

Obsolete

Termination

3 Wire Leads

Bearing Type

Ball

Power (Watts)

1.00W

Voltage Range

8 ~ 14VDC

Static Pressure

-

Voltage - Rated

12VDC

Lifetime @ Temp.

-

Material - Blade

Polyamide (PA), Nylon, Fiberglass Reinforced

Material - Frame

Polybutylene Terephthalate (PBT), Fiberglass Reinforced

Size / Dimension

Square - 80mm L x 80mm H

Ingress Protection

-

Current Rating (Amps)

-

Operating Temperature

-
