Lanka Micro

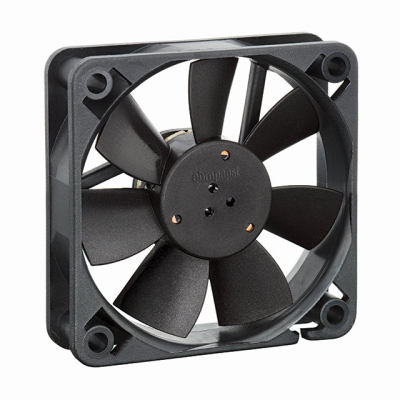

612F
| Manufacturer: | ebm-papst Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 612F | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 60X15MM 12VDC WIRE | $18.83 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3900 RPM
- Noise
- 27.0 dB(A)
- Width
- 15.00mm
- Series
- 600F
- Weight
- 0.066 lb (29.94 g)
- Air Flow
- 17.1 CFM (0.479m³/min)
- Fan Type
- Tubeaxial
- Features
- -
- Approvals
- CE, CSA, UL, VDE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Sintec
- Power (Watts)
- 1.00W
- Voltage Range
- 10.8 ~ 13.2VDC
- Static Pressure
- -
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 50000 Hrs @ 20°C
- Material - Blade
- Polyamide (PA), Nylon, Fiberglass Reinforced
- Material - Frame
- Polybutylene Terephthalate (PBT), Fiberglass Reinforced
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- -
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
