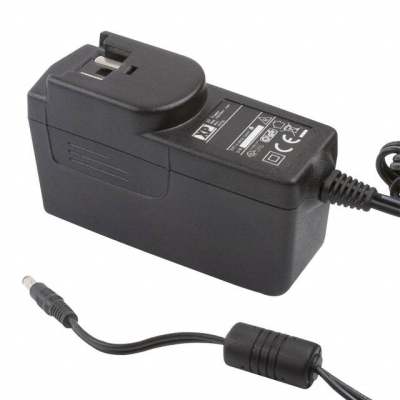

VEP36US15

Product Parameter

Form

Wall Mount (Class II)

Series

VEP36 (36W)

Weight

0.573 lb (259.91 g)

Approvals

CB, TUV, UL

Efficiency

Level V

Input Type

Multi-Blade (Sold Separately)

Cord Length

39.4" (1.00m)

Part Status

Discontinued at Digi-Key

Applications

ITE (Commercial), Medical

Polarization

Positive Center

Power (Watts)

36W

Input Connector

Multi-Blade

Region Utilized

International

Voltage - Input

90 ~ 264 VAC

Output Connector

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm

Size / Dimension

4.02" L x 1.42" W x 2.09" H (102.0mm x 36.0mm x 53.0mm)

Voltage - Output

15V

Operating Temperature

0°C ~ 40°C

Current - Output (Max)

2.4A

No Load Power Consumption

300mW (Max)
