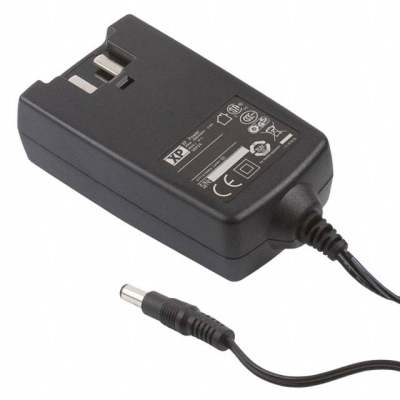

VEP24US24

Product Parameter

Form

Wall Mount (Class II)

Series

VEP24 (24W)

Weight

0.353 lb (160.12 g)

Approvals

CB, TUV, UL

Efficiency

Level IV

Input Type

Multi-Blade (Sold Separately)

Cord Length

59" (1.50m)

Part Status

Discontinued at Digi-Key

Applications

ITE (Commercial), Medical

Polarization

Positive Center

Power (Watts)

24W

Input Connector

Multi-Blade

Region Utilized

International

Voltage - Input

80 ~ 264 VAC

Output Connector

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm

Size / Dimension

3.46" L x 1.89" W x 1.14" H (88.0mm x 47.9mm x 29.0mm)

Voltage - Output

24V

Operating Temperature

0°C ~ 40°C

Current - Output (Max)

1A

No Load Power Consumption

300mW (Max)
