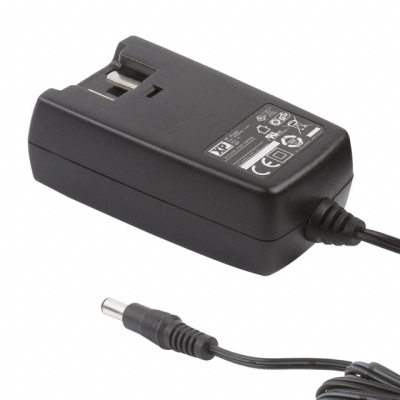

VEP08US12

Product Parameter

Form

Wall Mount (Class II)

Series

VEP08 (8W)

Weight

0.177 lb (80.29 g)

Approvals

CB, TUV, UL

Efficiency

Level V

Input Type

Multi-Blade (Sold Separately)

Cord Length

70.9" (1.80m)

Part Status

Discontinued at Digi-Key

Applications

ITE (Commercial), Medical

Polarization

Positive Center

Power (Watts)

8W

Input Connector

Multi-Blade

Region Utilized

International

Voltage - Input

80 ~ 264 VAC

Output Connector

Barrel Plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm

Size / Dimension

2.83" L x 1.67" W x 1.06" H (72.0mm x 42.4mm x 26.8mm)

Voltage - Output

12V

Operating Temperature

0°C ~ 40°C

Current - Output (Max)

660mA

No Load Power Consumption

300mW (Max)
