1969100000
| Manufacturer: | Weidmuller |
In Stock 230 pcs
|
|
|---|---|---|---|
| Datasheet: | 1969100000 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |

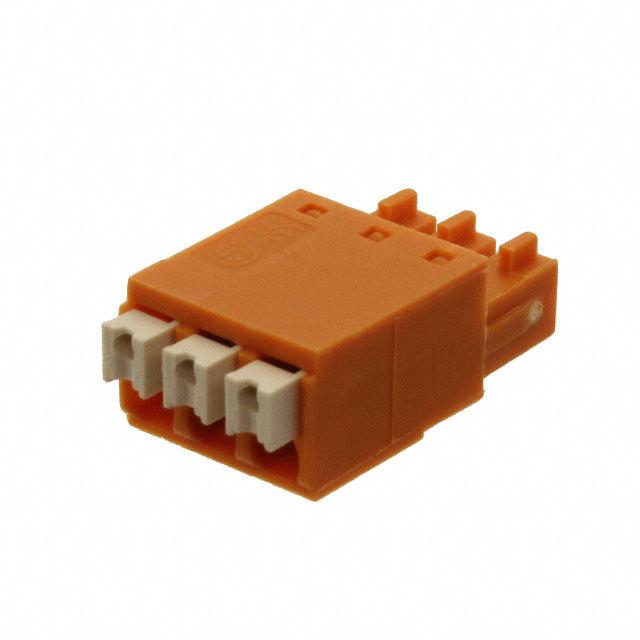

| Description: | TERM BLOCK PLUG 3POS STR 3.81MM | $3 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Orange
- Pitch
- 0.150" (3.81mm)
- Series
- Omnimate BC
- Features
- Push Button Actuated
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 10A
- Voltage - UL
- 300V
- Current - IEC
- 17.5A
- Mounting Type
- Free Hanging (In-Line)
- Voltage - IEC
- 320V
- Torque - Screw
- -
- Plug Wire Entry
- 180°
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 0.311" (7.90mm)
- Termination Style
- Screwless - Leg Spring, Push-In Spring
- Wire Strip Length
- 9mm
- Header Orientation
- -
- Ingress Protection
- IP20
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA66), Nylon 6/6, Glass Filled
- Number of Positions
- 3
- Positions Per Level
- 3
- Contact Mating Finish
- Tin
- Operating Temperature
- -50°C ~ 120°C
- Wire Gauge or Range - AWG
- 16-26 AWG
- Wire Gauge or Range - mm²
- 0.14-1.5mm²
- Material Flammability Rating
- UL94 V-0
