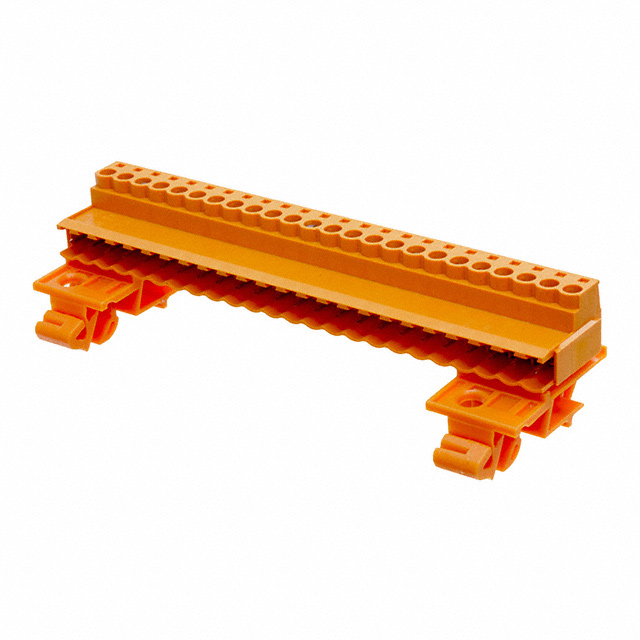

1846120000
| Manufacturer: | Weidmuller |
In Stock 23 pcs
|
|
|---|---|---|---|
| Datasheet: | 1846120000 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK PLUG 24POS STR 5.08MM | $17.83 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Male Pins
- Color
- Orange
- Pitch
- 0.200" (5.08mm)
- Series
- Omnimate SLA
- Features
- -
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 14A
- Voltage - UL
- 300V
- Current - IEC
- 21.5A
- Mounting Type
- DIN Rail/Channel
- Voltage - IEC
- 400V
- Torque - Screw
- 0.4-0.5 Nm (3.5-4.4 Lb-In)
- Plug Wire Entry
- 180°
- Contact Material
- Copper Alloy
- Number of Levels
- 1
- Insulation Height
- 1.189" (30.20mm)
- Termination Style
- Screw - Clamping Yoke (Tension Sleeve)
- Wire Strip Length
- 7mm
- Header Orientation
- -
- Ingress Protection
- -
- Contact Tail Length
- -
- Dielectric Material
- Polybutylene Terephthalate (PBT), Glass Filled
- Number of Positions
- 24
- Positions Per Level
- 24
- Contact Mating Finish
- Tin
- Operating Temperature
- -
- Wire Gauge or Range - AWG
- 12-26 AWG
- Wire Gauge or Range - mm²
- 0.2-2.5mm²
- Material Flammability Rating
- UL94 V-0
