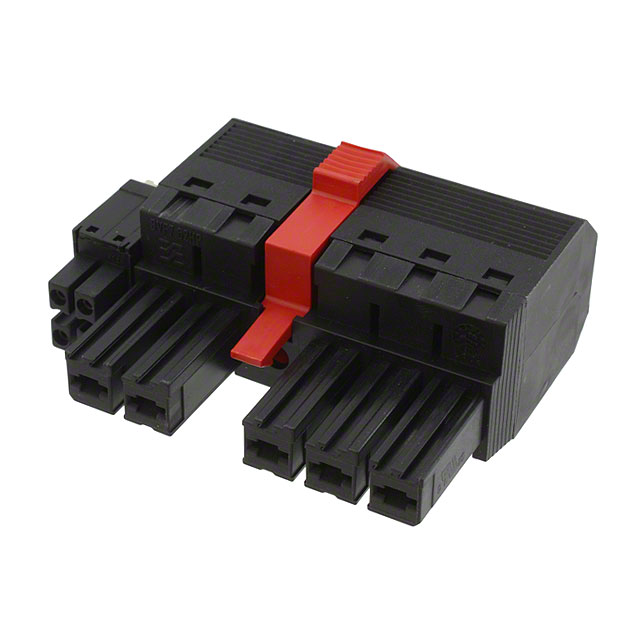

1082140000
| Manufacturer: | Weidmuller |
In Stock 50 pcs
|
|
|---|---|---|---|
| Datasheet: | 1082140000 | ||
| Product Category: | Terminal Blocks - Headers, Plugs and Sockets | Reference Price (In US Dollars) | 1pcs |
| Description: | TERM BLOCK PLUG 9POS STR 7.62MM | $13.33 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Type
- Plug, Female Sockets
- Color
- Black
- Pitch
- 0.300" (7.62mm)
- Series
- Omnimate BV
- Features
- Latch Lock
- Packaging
- Bulk
- Screw Size
- -
- Part Status
- Active
- Current - UL
- 33A
- Voltage - UL
- 600V
- Current - IEC
- 38A
- Mounting Type
- Free Hanging (In-Line)
- Voltage - IEC
- 1kV
- Torque - Screw
- -
- Plug Wire Entry
- 180°
- Contact Material
- Copper Alloy
- Number of Levels
- Hybrid
- Insulation Height
- 0.958" (24.33mm)
- Termination Style
- Screwless - Leg Spring, Push-In Spring
- Wire Strip Length
- 12mm
- Header Orientation
- -
- Ingress Protection
- IP20
- Contact Tail Length
- -
- Dielectric Material
- Polyamide (PA), Nylon, Glass Filled
- Number of Positions
- 9
- Positions Per Level
- 9 (5 Power + 4 Signal)
- Contact Mating Finish
- Tin
- Operating Temperature
- -50°C ~ 125°C
- Wire Gauge or Range - AWG
- 8-24 AWG
- Wire Gauge or Range - mm²
- 0.5-10mm²
- Material Flammability Rating
- UL94 V-0
