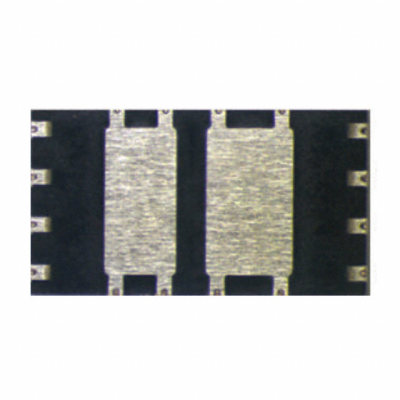

SQUN702E-T1_GE3
| Manufacturer: | Vishay / Siliconix |
In Stock 150 pcs
|
|
|---|---|---|---|
| Datasheet: | SQUN702E-T1_GE3 | ||
| Product Category: | Transistors - FETs, MOSFETs - Arrays | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET N&P-CH COMMON DRAIN | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- Automotive, AEC-Q101, TrenchFET®
- FET Type
- N and P-Channel, Common Drain
- Packaging
- Digi-Reel®
- FET Feature
- Standard
- Part Status
- Active
- Power - Max
- 48W (Tc), 60W (Tc)
- Mounting Type
- Surface Mount, Wettable Flank
- Package / Case
- Die
- Vgs(th) (Max) @ Id
- 2.5V @ 250µA, 3.5V @ 250µA
- Operating Temperature
- -55°C ~ 175°C (TJ)
- Rds On (Max) @ Id, Vgs
- 9.2mOhm @ 9.8A, 10V, 60mOhm @ 5A, 10V, 30mOhm @ 6A, 10V
- Supplier Device Package
- Die
- Gate Charge (Qg) (Max) @ Vgs
- 23nC, 14nC, 30.2nC @ 10V
- Drain to Source Voltage (Vdss)
- 40V, 200V
- Input Capacitance (Ciss) (Max) @ Vds
- 1474pF, 1450pF, 1302pF @ 20V, 100V
- Current - Continuous Drain (Id) @ 25°C
- 30A (Tc), 20A (Tc)
