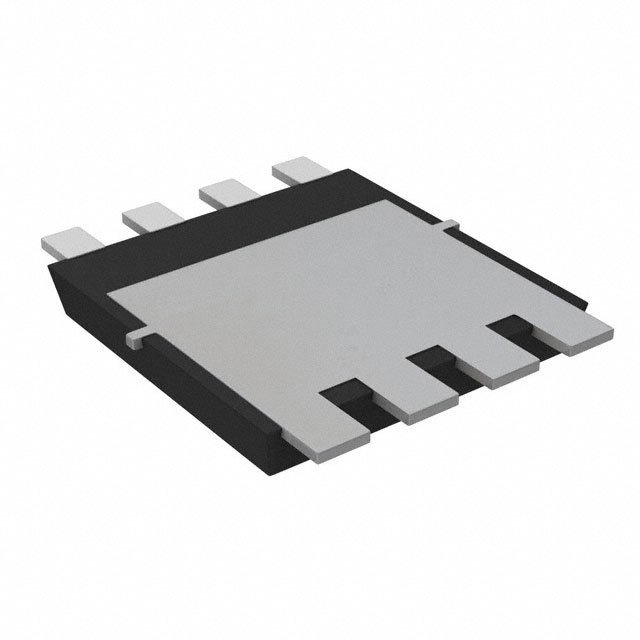

TPWR8503NL,L1Q
| Manufacturer: | Toshiba Semiconductor and Storage |
In Stock 1676 pcs
|
|
|---|---|---|---|
| Datasheet: | TPWR8503NL,L1Q | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET N-CH 30V 150A 8DSOP | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- U-MOSVIII-H
- FET Type
- N-Channel
- Packaging
- Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerVDFN
- Vgs(th) (Max) @ Id
- 2.3V @ 1mA
- Operating Temperature
- 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 0.85mOhm @ 50A, 10V
- Power Dissipation (Max)
- 800mW (Ta), 142W (Tc)
- Supplier Device Package
- 8-DSOP Advance
- Gate Charge (Qg) (Max) @ Vgs
- 74nC @ 10V
- Drain to Source Voltage (Vdss)
- 30V
- Input Capacitance (Ciss) (Max) @ Vds
- 6900pF @ 15V
- Current - Continuous Drain (Id) @ 25°C
- 150A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
