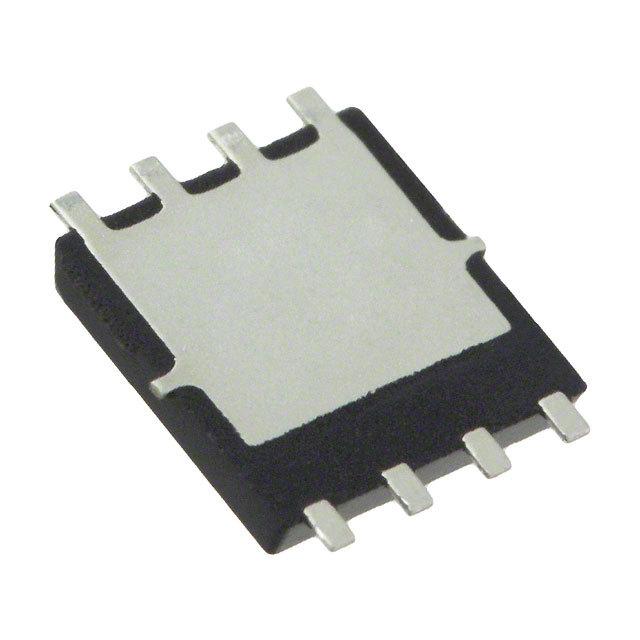

TPN22006NH,LQ
| Manufacturer: | Toshiba Semiconductor and Storage |
In Stock 1618 pcs
|
|
|---|---|---|---|
| Datasheet: | TPN22006NH,LQ | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET N CH 60V 9A 8-TSON | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- U-MOSVIII-H
- FET Type
- N-Channel
- Packaging
- Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- 8-PowerVDFN
- Vgs(th) (Max) @ Id
- 4V @ 100µA
- Operating Temperature
- 150°C (TJ)
- Rds On (Max) @ Id, Vgs
- 22mOhm @ 4.5A, 10V
- Power Dissipation (Max)
- 700mW (Ta), 18W (Tc)
- Supplier Device Package
- 8-TSON Advance (3.3x3.3)
- Gate Charge (Qg) (Max) @ Vgs
- 12nC @ 10V
- Drain to Source Voltage (Vdss)
- 60V
- Input Capacitance (Ciss) (Max) @ Vds
- 710pF @ 30V
- Current - Continuous Drain (Id) @ 25°C
- 9A (Ta)
- Drive Voltage (Max Rds On, Min Rds On)
- 6.5V, 10V
