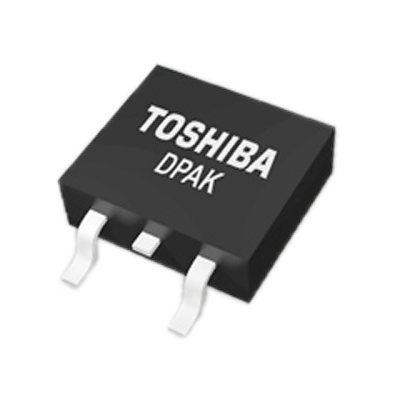

TK3R1P04PL,RQ
| Manufacturer: | Toshiba Semiconductor and Storage |
In Stock 4898 pcs
|
|
|---|---|---|---|
| Datasheet: | TK3R1P04PL,RQ | ||
| Product Category: | Transistors - FETs, MOSFETs - Single | Reference Price (In US Dollars) | 1pcs |
| Description: | MOSFET N-CHANNEL 40V 58A DPAK | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- U-MOSIX-H
- FET Type
- N-Channel
- Packaging
- Digi-Reel®
- Vgs (Max)
- ±20V
- Technology
- MOSFET (Metal Oxide)
- FET Feature
- -
- Part Status
- Active
- Mounting Type
- Surface Mount
- Package / Case
- TO-252-3, DPak (2 Leads + Tab), SC-63
- Vgs(th) (Max) @ Id
- 2.4V @ 500µA
- Operating Temperature
- 175°C
- Rds On (Max) @ Id, Vgs
- 3.1mOhm @ 29A, 10V
- Power Dissipation (Max)
- 87W (Tc)
- Supplier Device Package
- DPAK
- Gate Charge (Qg) (Max) @ Vgs
- 60nC @ 10V
- Drain to Source Voltage (Vdss)
- 40V
- Input Capacitance (Ciss) (Max) @ Vds
- 4670pF @ 20V
- Current - Continuous Drain (Id) @ 25°C
- 58A (Tc)
- Drive Voltage (Max Rds On, Min Rds On)
- 4.5V, 10V
