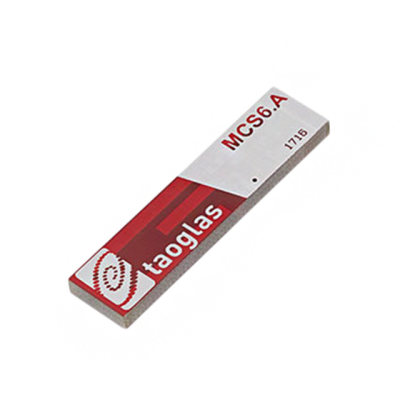

MCS6.A

Product Parameter

Gain

-0.02dBi, -1.05dBi, 2.76dBi, 3.11dBi, 3.26dBi, 3.75dBi

VSWR

-

Series

-

Features

-

Packaging

Digi-Reel®

Part Status

Active

Power - Max

5W

Return Loss

-10dB

Termination

Solder

Antenna Type

Chip

Applications

CDMA, EDGE, DCS, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA

Height (Max)

0.118" (3.00mm)

Mounting Type

Surface Mount

Frequency Group

Wide Band

Frequency Range

698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz

Number of Bands

6

Ingress Protection

-

RF Family/Standard

Cellular

Frequency (Center/Band)

707.5MHz, 737.5MHz, 1.733GHz, 1.88GHz, 1.96GHz, 2.133GHz
