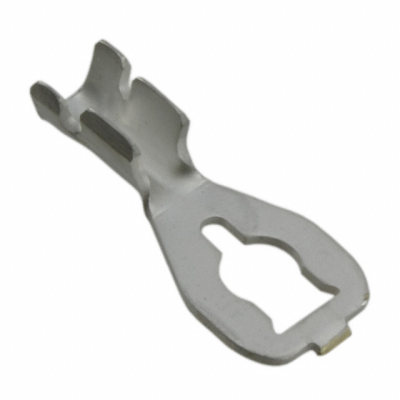

62795-1

Product Parameter

Color

-

Series

-

Features

-

Packaging

Digi-Reel®

Insulation

Non-Insulated

Wire Gauge

12-16 AWG

Part Status

Active

Termination

Crimp

Mounting Type

Free Hanging (In-Line)

Stud/Tab Size

8 Stud

Terminal Type

Spring, Snap

Contact Finish

Tin

Contact Material

Brass

Length - Overall

0.745" (18.92mm)

Insulation Diameter

0.110" ~ 0.150" (2.79mm ~ 3.81mm)

Width - Outer Edges

0.343" (8.71mm)

Length - Termination

-

Material - Insulation

-

Tongue Inside Opening

0.171" (4.34mm)

Length - Ring Center to Termination

0.312" (7.92mm)
