5-916783-2
Manufacturer: | TE Connectivity AMP Connectors |
In Stock 0 pcs
|
|
---|---|---|---|
Datasheet: | 5-916783-2 | ||
Product Category: | Sockets for ICs, Transistors | Reference Price (In US Dollars) | 1pcs |

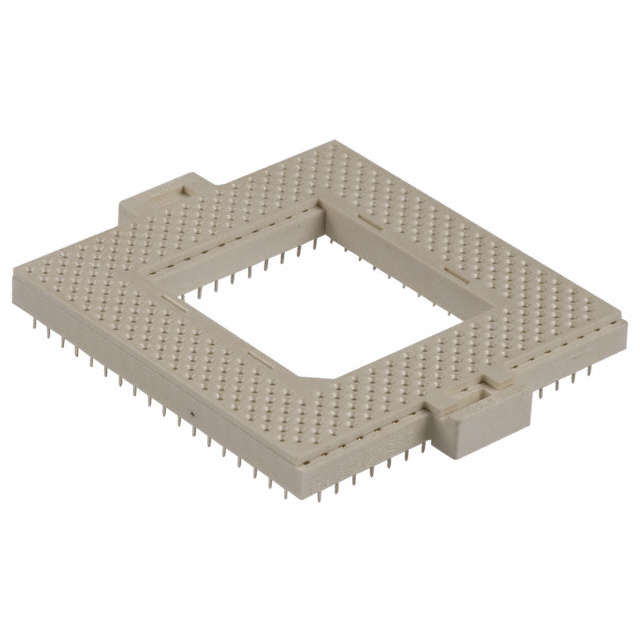

Description: | CONN SOCKET PGA ZIF 370POS GOLD | Inquiry |
Fill out the below form and we will contact you as soon as possible.
Product Parameter
- Type
- PGA, ZIF (ZIP)
- Series
- -
- Features
- Open Frame
- Packaging
- Tray
- Part Status
- Obsolete
- Termination
- Solder
- Pitch - Post
- 0.100" (2.54mm)
- Mounting Type
- Through Hole
- Pitch - Mating
- 0.100" (2.54mm)
- Contact Resistance
- -
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Contact Finish - Post
- Gold
- Operating Temperature
- -
- Contact Finish - Mating
- Gold
- Contact Material - Post
- Phosphor Bronze
- Termination Post Length
- 0.110" (2.78mm)
- Contact Material - Mating
- Phosphor Bronze
- Material Flammability Rating
- UL94 V-0
- Contact Finish Thickness - Post
- 30.0µin (0.76µm)
- Contact Finish Thickness - Mating
- 30.0µin (0.76µm)
- Number of Positions or Pins (Grid)
- 370 (19 x 19)
