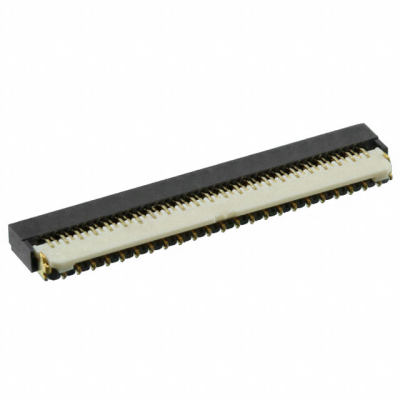

4-2041390-5
| Manufacturer: | TE Connectivity AMP Connectors |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 4-2041390-5 | ||
| Product Category: | FFC, FPC (Flat Flexible) Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | 0.3 FPC 45P ZIF BC G/F | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Pitch
- 0.012" (0.30mm)
- Series
- -
- Features
- Zero Insertion Force (ZIF)
- Packaging
- Digi-Reel®
- Part Status
- Obsolete
- Termination
- Solder
- Housing Color
- Black
- Mating Cycles
- -
- Mounting Type
- Surface Mount, Right Angle
- Actuator Color
- Natural
- Cable End Type
- Tapered
- Contact Finish
- Gold
- Flat Flex Type
- FFC, FPC
- Voltage Rating
- 30V
- Locking Feature
- Flip Lock
- Contact Material
- Phosphor Bronze
- Actuator Material
- Liquid Crystal Polymer (LCP)
- FFC, FCB Thickness
- 0.20mm
- Height Above Board
- 0.039" (1.00mm)
- Dielectric Material
- Liquid Crystal Polymer (LCP)
- Number of Positions
- 45
- Current Rating (Amps)
- 0.2A
- Operating Temperature
- -55°C ~ 85°C
- Connector/Contact Type
- Contacts, Bottom
- Contact Finish Thickness
- Flash
- Material Flammability Rating
- UL94 V-0
