227716-3

Product Parameter

Series

-

Features

Extended Insulation

Includes

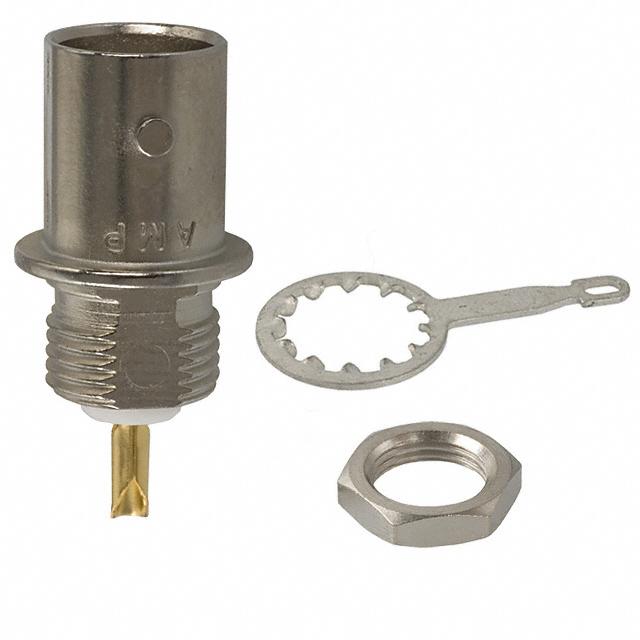

3 pcs - 1 Connector, 1 Lockwasher, 1 Nut

Impedance

50Ohm

Packaging

Bulk

Body Finish

Nickel

Cable Group

-

Part Status

Obsolete

Body Material

-

Housing Color

Silver

Mating Cycles

500

Mounting Type

Panel Mount

Connector Type

Jack, Female Socket

Fastening Type

Bayonet Lock

Insertion Loss

-

Voltage Rating

500V

Connector Style

BNC

Frequency - Max

4GHz

Number of Ports

1

Mounting Feature

Bulkhead - Rear Side Nut

Ingress Protection

-

Shield Termination

Solder

Contact Termination

Solder Cup

Dielectric Material

-

Operating Temperature

-65°C ~ 165°C

Center Contact Plating

Gold

Center Contact Material

Phosphor Bronze
