Lanka Micro

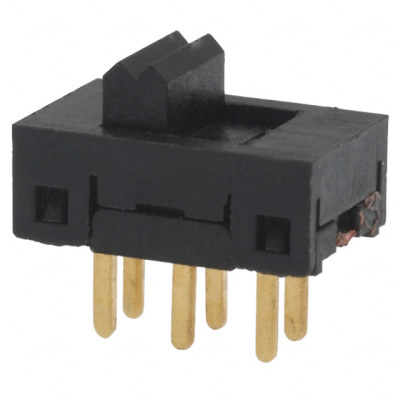

SSA22G
| Manufacturer: | TE Connectivity ALCOSWITCH Switches |
In Stock 1374 pcs
|
|
|---|---|---|---|
| Datasheet: | SSA22G | ||
| Product Category: | Slide Switches | Reference Price (In US Dollars) | 1pcs |
| Description: | SWITCH SLIDE DPDT 0.4VA 20V | $3.48 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Series
- SSA
- Circuit
- DPDT
- Features
- Epoxy Sealed Terminals
- Packaging
- Bulk
- Part Status
- Obsolete
- Actuator Type
- Standard
- Mounting Type
- Through Hole
- Switch Travel
- 2.50mm
- Contact Finish
- Gold
- Contact Timing
- Non-Shorting (BBM)
- Actuator Length
- 2.00mm
- Electrical Life
- 10,000 Cycles
- Mechanical Life
- 10,000 Cycles
- Operating Force
- 250gf
- Switch Function
- On-On
- Contact Material
- Copper Alloy
- Actuator Material
- Polyamide (PA), Nylon
- Termination Style
- PC Pin
- Voltage Rating - AC
- 20V
- Voltage Rating - DC
- 20V
- Current Rating (Amps)
- 0.4VA (AC/DC)
- Operating Temperature
- -20°C ~ 70°C
