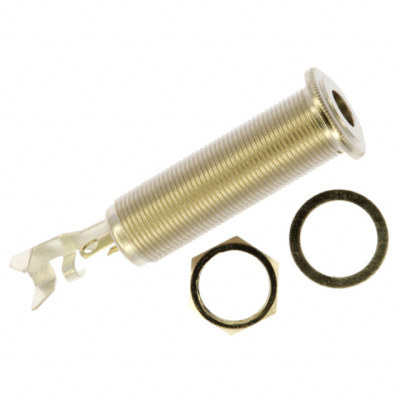

152B
| Manufacturer: | Switchcraft Inc. |
In Stock 152 pcs
|
|
|---|---|---|---|
| Datasheet: | 152B | ||
| Product Category: | Barrel - Audio Connectors | Reference Price (In US Dollars) | 1pcs |
| Description: | CONN JACK STEREO 6.35MM PNL MNT | $12.28 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- Gender
- Female
- Series
- E
- Features
- Mounting Hardware, Thread Lock
- Includes
- 3 pcs - 1 Connector, 1 Nut, 1 Washer
- Packaging
- Bulk
- Shielding
- Unshielded
- Body Color
- Silver
- Part Status
- Active
- Termination
- Solder Eyelet(s)
- Thread Size
- 15/32-32 NS-2A
- Signal Lines
- Stereo (3 Conductor, TRS)
- Body Material
- Brass
- Cable Opening
- -
- Mounting Type
- Panel Mount
- Connector Type
- Phone Jack
- Actual Diameter
- 0.250" (6.35mm)
- Panel Hole Size
- 0.469" (11.90mm)
- Voltage - Rated
- 48VDC
- Contact Material
- Copper Alloy
- Insulation Color
- -
- Internal Switch(s)
- Does Not Contain Switch
- Dielectric Material
- -
- Mating Length/Depth
- -
- Current Rating (Amps)
- 250mA
- Operating Temperature
- -
- Contact Material - Plating
- Nickel
- Number of Positions/Contacts
- 3 Conductors, 3 Contacts
- Industry Recognized Mating Diameter
- 6.35mm (0.250", 1/4") - Headphone
