Lanka Micro

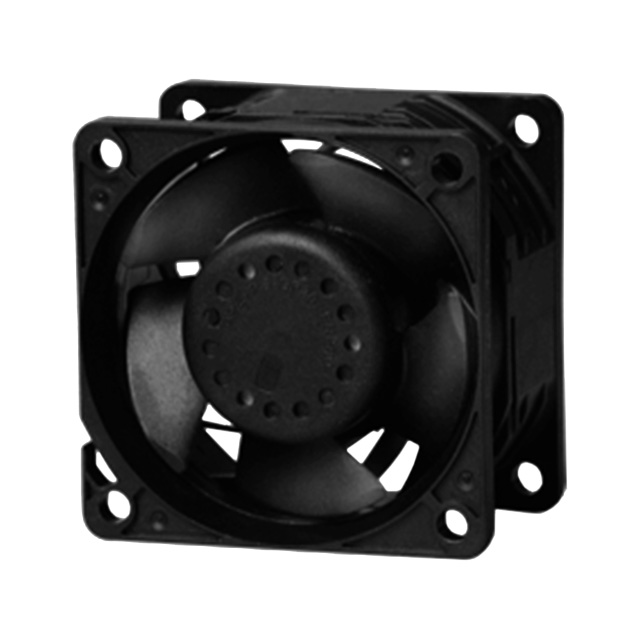

VF60381BX-000U-A9H
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | VF60381BX-000U-A9H | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | 12VDC, 2BALL, 67.8 CFM, AUTO RES | $28.67 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 22800 RPM
- Noise
- 64.1 dB(A)
- Width
- 38.00mm
- Series
- VF
- Weight
- 0.265 lb (120.2 g)
- Air Flow
- 67.8 CFM (1.90m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 22.80W
- Voltage Range
- 6 ~ 13.2VDC
- Static Pressure
- 4.840 in H2O (1205.6 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 60mm L x 60mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 1.90A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
