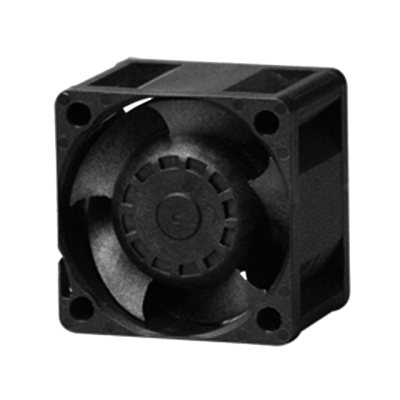

VF38281B1-000U-A9H
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | VF38281B1-000U-A9H | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | 12VDC, 2BALL, 18.9 CFM, AUTO RES | $19.98 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 21600 RPM
- Noise
- 58.1 dB(A)
- Width
- 28.00mm
- Series
- VF
- Weight
- 0.098 lb (44.45 g)
- Air Flow
- 18.9 CFM (0.529m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 5.70W
- Voltage Range
- 6 ~ 13.2VDC
- Static Pressure
- 2.360 in H2O (587.8 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 38mm L x 38mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.475A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
