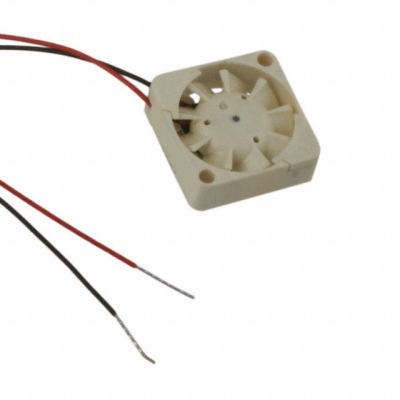

UF3A3-700
| Manufacturer: | Sunon Fans |
In Stock 105 pcs
|
|
|---|---|---|---|
| Datasheet: | UF3A3-700 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 10X3MM VAPO 3VDC WIRE | $21.31 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 17000 RPM
- Noise
- 27.3 dB(A)
- Width
- 3.00mm
- Series
- MagLev® UF, Mighty Mini
- Weight
- 0.001 lb (0.45 g)
- Air Flow
- 0.121 CFM (0.003m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 290mW
- Voltage Range
- 2 ~ 3.5VDC
- Static Pressure
- 0.042 in H2O (10.4 Pa)
- Voltage - Rated
- 3VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Thermoplastic
- Material - Frame
- Thermoplastic
- Size / Dimension
- Square - 10mm L x 10mm H
- Ingress Protection
- IP55 - Dust Protected, Water Resistant
- Current Rating (Amps)
- 0.096A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
