Lanka Micro

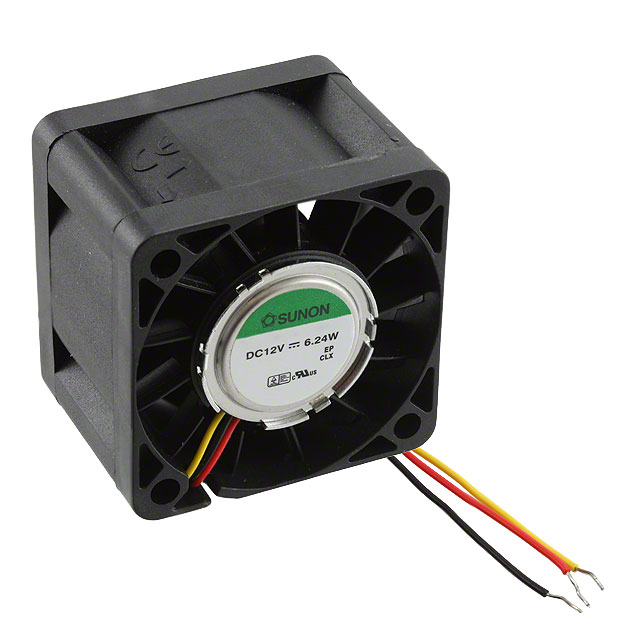

SG38281B1-000U-G99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | SG38281B1-000U-G99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 38X28MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 19000 RPM
- Noise
- 56.2 dB
- Width
- 28.00mm
- Series
- SG
- Weight
- 0.077 lb (34.93 g)
- Air Flow
- 24.8 CFM (0.694m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Speed Sensor (Tach)
- Approvals
- CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 6.24W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 1.470 in H2O (366.2 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 38mm L x 38mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.520A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
