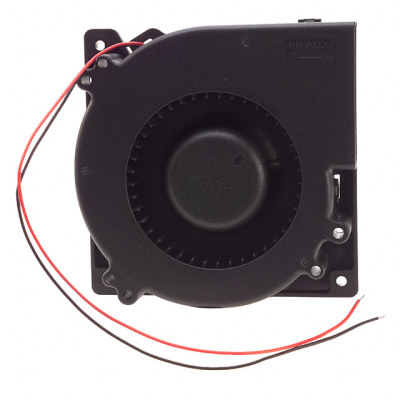

PMB1212PLB3-A (2)
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | PMB1212PLB3-A (2) | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN BLOWER 120X32MM 12VDC WIRE | Inquiry | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 2100 RPM
- Noise
- 49.6 dB(A)
- Width
- 32.00mm
- Series
- PMB
- Weight
- 0.551 lb (249.93 g)
- Air Flow
- 31.4 CFM (0.879m³/min)
- Fan Type
- Blower
- Features
- -
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Obsolete
- Termination
- 2 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 5.40W
- Voltage Range
- 10.2 ~ 13.8VDC
- Static Pressure
- 0.640 in H2O (159.4 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square/Rounded - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.450A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
