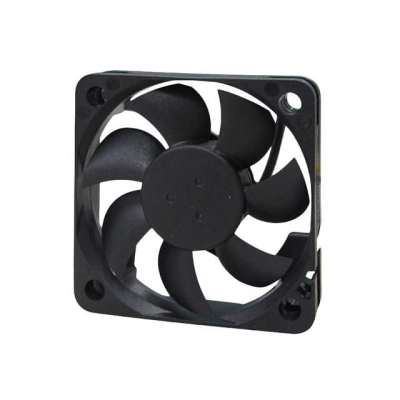

MF50101V1-1000U-A99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | MF50101V1-1000U-A99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 50X10MM VAPO 12VDC | $7.81 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 5800 RPM
- Noise
- 30.7 dB(A)
- Width
- 10.00mm
- Series
- MagLev® MF
- Weight
- 0.043 lb (19.5 g)
- Air Flow
- 13.8 CFM (0.386m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 840mW
- Voltage Range
- 4.5 ~ 13.8VDC
- Static Pressure
- 0.150 in H2O (37.3 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 50mm L x 50mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.070A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
