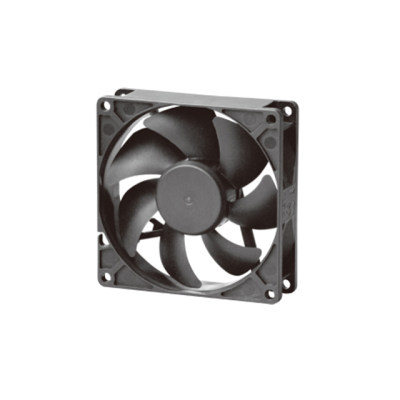

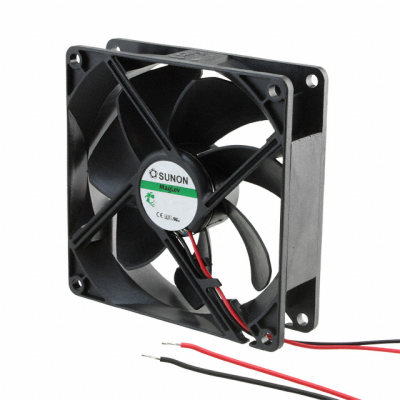

HA92251V4-1000U-A99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | HA92251V4-1000U-A99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | 92X92X25 12VDC VAPO 28.4CFM | $6.81 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 1700 RPM
- Noise
- 17.7 dB(A)
- Width
- 25.00mm
- Series
- MagLev® HA
- Weight
- -
- Air Flow
- 28.4 CFM (0.795m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 540mW
- Voltage Range
- 4.5 ~ 13.8VDC
- Static Pressure
- 0.050 in H2O (12.4 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 70000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 92mm L x 92mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.045A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
