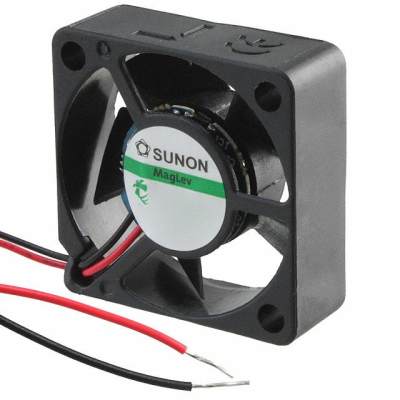

HA30101V3-000U-A99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | HA30101V3-000U-A99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 30X10MM 12VDC WIRE | $5.96 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 7000 RPM
- Noise
- 17.6 dB(A)
- Width
- 10.00mm
- Series
- MagLev® HA
- Weight
- 0.019 lb (8.62 g)
- Air Flow
- 3.5 CFM (0.098m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 2 Wire Leads
- Bearing Type
- Vapo-Bearing™
- Power (Watts)
- 440mW
- Voltage Range
- 4.5 ~ 13.8VDC
- Static Pressure
- 0.080 in H2O (19.9 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- 60000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 30mm L x 30mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.036A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
