Lanka Micro
EEC0382B1-000U-F99
| Manufacturer: | Sunon Fans |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | EEC0382B1-000U-F99 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

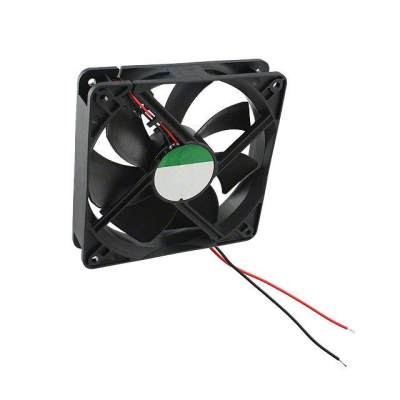

| Description: | FAN AXIAL 120X38MM 24VDC | $20.86 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3100 RPM
- Noise
- 48.0 dB(A)
- Width
- 38.00mm
- Series
- EEC
- Weight
- 0.472 lb (214.1 g)
- Air Flow
- 138.0 CFM (3.86m³/min)
- Fan Type
- Tubeaxial
- Features
- Auto Restart, Locked Rotor Sensor
- Approvals
- CE, CUR, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 9.60W
- Voltage Range
- 10 ~ 27.6VDC
- Static Pressure
- 0.360 in H2O (89.6 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 100000 Hrs @ 40°C
- Material - Blade
- Polybutylene Terephthalate (PBT)
- Material - Frame
- Polybutylene Terephthalate (PBT)
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.400A
- Operating Temperature
- 14 ~ 158°F (-10 ~ 70°C)
