9TGA24P0H001
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 1 pcs
|
|
|---|---|---|---|
| Datasheet: | 9TGA24P0H001 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

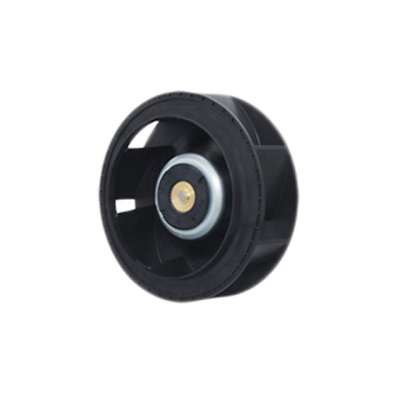

| Description: | CENTRIFUGAL FAN 24VDC 175x69MM | $166.57 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4950 RPM
- Noise
- 77.0 dB(A)
- Width
- 69.00mm
- Series
- San Ace C175
- Weight
- 1.6 lbs (725.7 g)
- Air Flow
- 541.0 CFM (15.15m³/min)
- Fan Type
- Motorized Impellers
- Features
- PWM Control, Speed Sensor (Tach)
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 115.0W
- Voltage Range
- 16 ~ 36VDC
- Static Pressure
- 3.330 in H2O (829.5 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- Varies Based on Temperature
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 175mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 4.8A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
