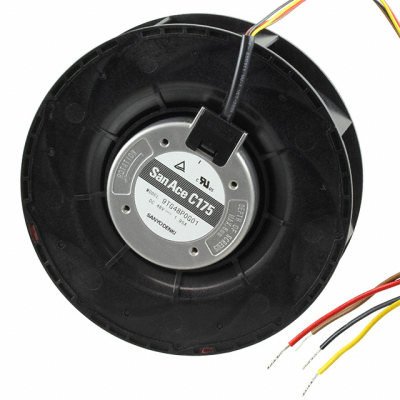

9TG48P0G01
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9TG48P0G01 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN 175X69MM 48VDC CENT PULSE | $78.93 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 4700 RPM
- Noise
- 73.0 dB(A)
- Width
- 69.00mm
- Series
- San Ace C175
- Weight
- 1.7 lbs (771.1 g)
- Air Flow
- 494.7 CFM (13.85m³/min)
- Fan Type
- Motorized Impellers
- Features
- Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 4 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 93.6W
- Voltage Range
- 36 ~ 55.2VDC
- Static Pressure
- 3.550 in H2O (885.0 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Aluminum
- Size / Dimension
- Round - 175mm Dia
- Ingress Protection
- -
- Current Rating (Amps)
- 1.95A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
