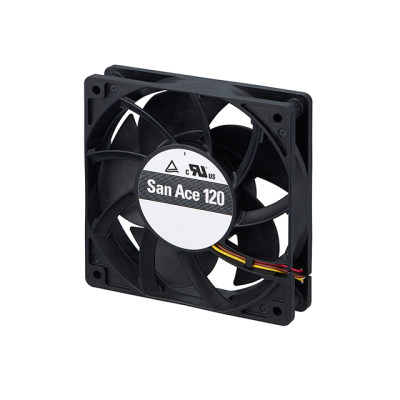

9GA1248G4001
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 30 pcs
|
|
|---|---|---|---|
| Datasheet: | 9GA1248G4001 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | FAN AXIAL 120X25.4MM 48VDC WIRE | $51.44 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 6400 RPM
- Noise
- 57.0 dB(A)
- Width
- 25.40mm
- Series
- San Ace 120
- Weight
- 0.617 lb (280.00 g)
- Air Flow
- 134.3 CFM (3.76m³/min)
- Fan Type
- Tubeaxial
- Features
- Speed Sensor (Tach)
- Approvals
- cURus, TUV
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 11.52W
- Voltage Range
- 36 ~ 53VDC
- Static Pressure
- 1.470 in H2O (366.2 Pa)
- Voltage - Rated
- 48VDC
- Lifetime @ Temp.
- Varies Based on Temperature
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Square - 120mm L x 120mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.240A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
