9CR0412H5D01
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 0 pcs
|
|
|---|---|---|---|
| Datasheet: | 9CR0412H5D01 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |

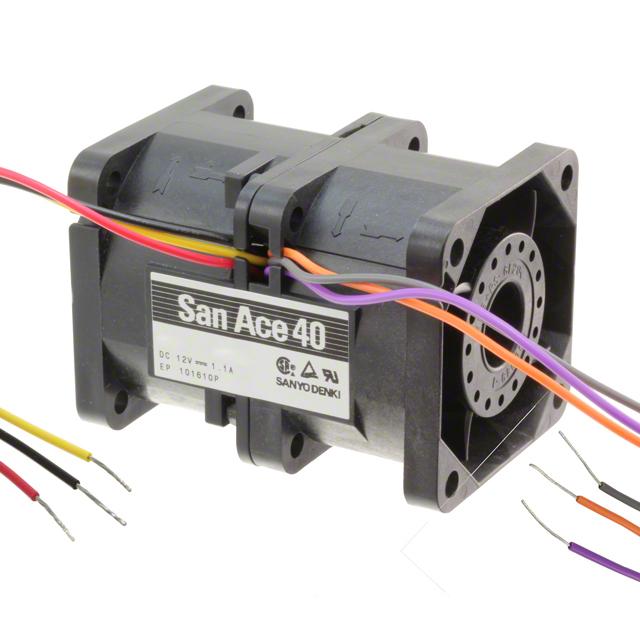

| Description: | FAN 40X56MM 12VDC DUAL LOCK | $15.18 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 13300 Front, 9300 Rear
- Noise
- 54.0 dB(A)
- Width
- 56.00mm
- Series
- San Ace 40
- Weight
- -
- Air Flow
- 20.8 CFM (0.582m³/min)
- Fan Type
- Tubeaxial (Dual)
- Features
- Counter-Rotating, Locked Rotor Sensor
- Approvals
- -
- Part Status
- Active
- Termination
- 3 Wire Leads per Fan
- Bearing Type
- Ball
- Power (Watts)
- 8.64W
- Voltage Range
- 10.8 ~ 13.2VDC
- Static Pressure
- 1.285 in H2O (320.0 Pa)
- Voltage - Rated
- 12VDC
- Lifetime @ Temp.
- -
- Material - Blade
- -
- Material - Frame
- -
- Size / Dimension
- Square - 40mm L x 40mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.720A
- Operating Temperature
- -
