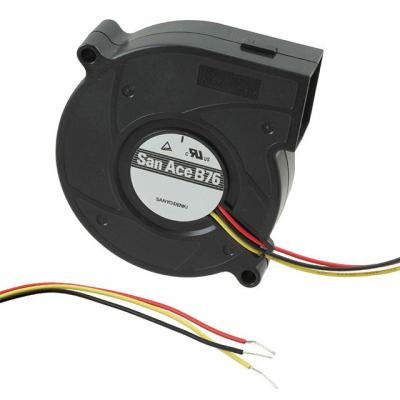

9BD24FC6-1
| Manufacturer: | Sanyo Denki America Inc. |
In Stock 99 pcs
|
|
|---|---|---|---|
| Datasheet: | 9BD24FC6-1 | ||
| Product Category: | DC Brushless Fans (BLDC) | Reference Price (In US Dollars) | 1pcs |
| Description: | BLOWER 76X20MM 24VDC TACH | $16.79 | |
Fill out the below form and we will contact you as soon as possible.
You May Also Be Interested In
Product Parameter
- RPM
- 3900 RPM
- Noise
- 39.0 dB(A)
- Width
- 20.00mm
- Series
- San Ace B76
- Weight
- 0.128 lb (58.06 g)
- Air Flow
- 8.8 CFM (0.246m³/min)
- Fan Type
- Blower
- Features
- Speed Sensor (Tach)
- Approvals
- CSA, TUV, UL
- Part Status
- Active
- Termination
- 3 Wire Leads
- Bearing Type
- Ball
- Power (Watts)
- 2.40W
- Voltage Range
- 10 ~ 27.6VDC
- Static Pressure
- 0.800 in H2O (199.3 Pa)
- Voltage - Rated
- 24VDC
- Lifetime @ Temp.
- 40000 Hrs @ 60°C
- Material - Blade
- Plastic
- Material - Frame
- Plastic
- Size / Dimension
- Rectangular/Rounded - 76mm L x 69.7mm H
- Ingress Protection
- -
- Current Rating (Amps)
- 0.100A
- Operating Temperature
- -4 ~ 158°F (-20 ~ 70°C)
